Fast, Portable, Versatile, and Affordable FIELD device with LAB accuracy! Measure EC /
RES / SP - electrical conductivity, resistivity, and self-potential with one small
handheld device.
Features
>0%
Accuracy
(0.01 to 06)
Ωm
Resistivity
(0-6 to 0) Sm-1
Conductivity
(-1 to +1) V
Δ = 0.01mV
Self Potential
Technical Specifications

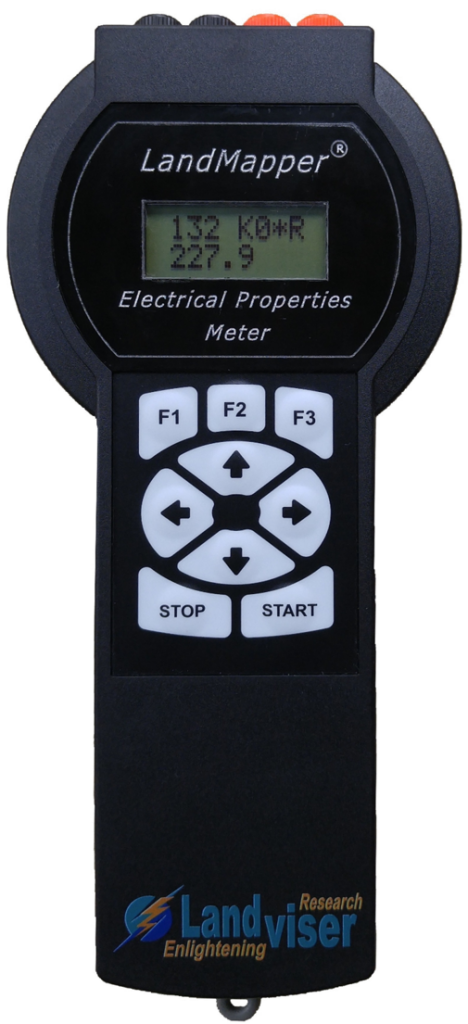

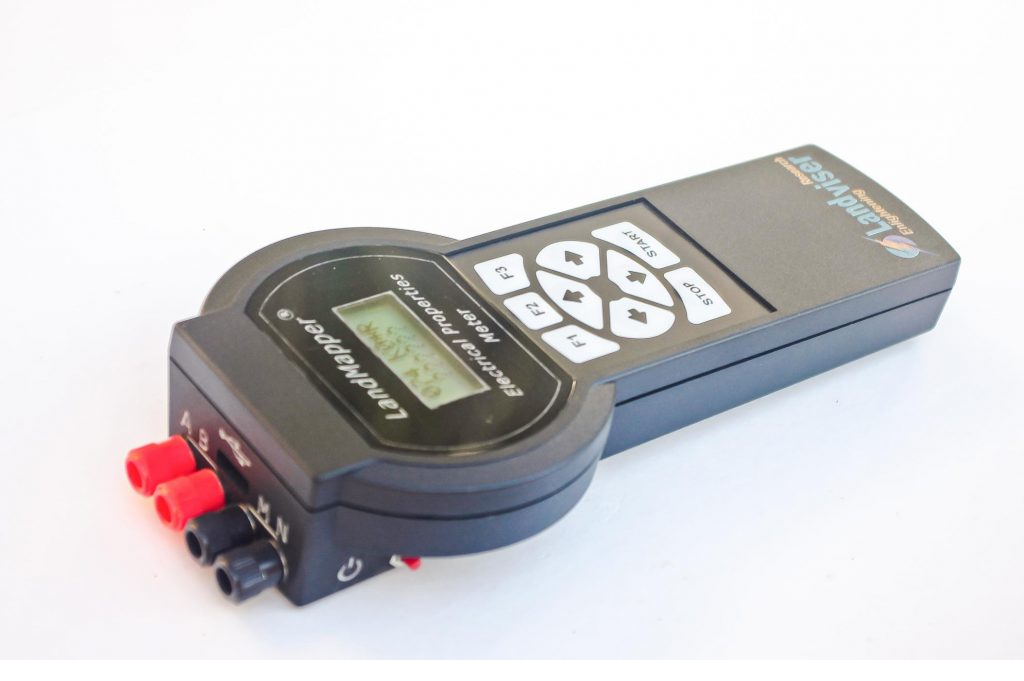

LandMapper measures electrical parameters of soils and other
semi-solid media - electrical
resistivity (ER), conductivity (EC) and potential (EP).
Device is compact, portable and can be used for non-attended measurements (monitoring).
Measured parameters can be viewed on display as well as stored in internal non-volatile
memory.
Range of measurements…………………………ER= 0.1-1 106 Ohm m
………………… EC= 1 10-6 - 10 Sm-1
(ERM-04 only)……………………………………………EP= -1 to +1 V (0.01 mV)
User-selectable ER/EC/SP modes of measurement.
Error of measurements is typically less than 1%.
LandMapper automatically tunes to the range of measuring parameters for maximal
accuracy.
Current of consumption no more……………………………………………………7.0 mA
Output voltage, no more…………………………………………………………………………5 V
Internal Impedance………………………………………………………2.5 MOhm
Measurements comparable with DC methods, frequency……………………1.25 Hz
User-defined K (geometrical coefficient)……………………………………………0.1 up to 99.9
Quantity of (changeable) K-coefficients..…………………………………………………..(9) 10
Quantity of data storage locations……………………………………………1000
Possibility to direct recording of measurement into specific memory cell in the
field,
reviewing and re-recording measurements
Real-time stamp to the accuracy of……………………1 sec
Synchronization of the internal clock of the device with atomic clock through PC
Autonomous monitoring of ER/EC/EP at user-selected interval ………………………………… 1, 2, 5,
15,
30 min …………………………………… 1, 2, 4, 6, 12, 24 h.
Computer connection……………………….USB
Range of operation temperatures……………………from - 10 up to + 40 C0 or 14 to 100 F
Air humidity no more than……………………………………85 %
Weight of the device no more……………………… 250 g or 8 oz
